Centrum na obrábanie profilov

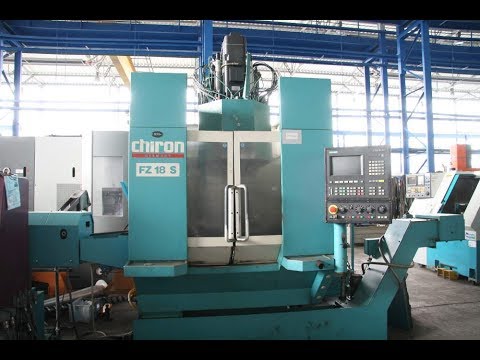

CHIRON WERKE GMBH & FZ 18 S

Technical Details:

x-travel: approx. 1000 mm
y-travel: 400 mm
z-travel: 420 mm

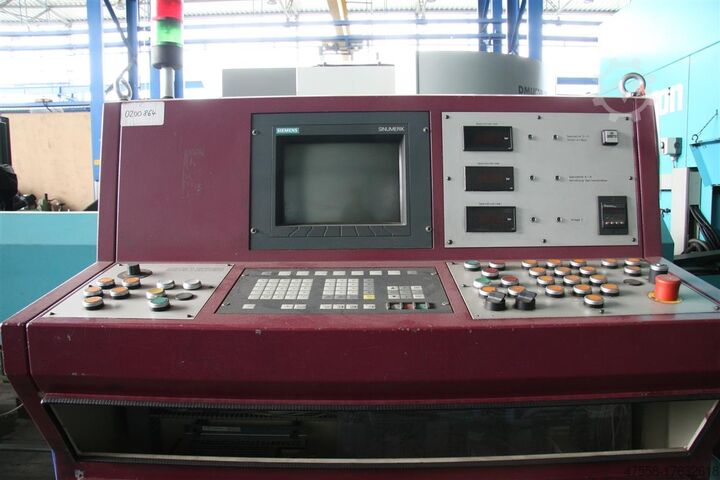

Control: Siemens Sinumerik 805/810
Tapping up to max.: M 22
Drilling capacity in St 60 - solid drilling: 25 mm
Milling area: Capacity in St 60: 150 mm
Saw stroke: approx. 55 mm
Speed range - stepless: 20-6000 rpm
Operating hours: manual 26,180 h
Tool turret: 12 positions
Tool holder: SK 40
Total power requirement: 18 kVA
Machine weight approx.: 5.0 t
Machine dimensions LxWxH: 2.9 x 2.5 x 2.8 m
Transport dimensions machine: 2.4 x 2.6 x 2.75 m

Equipment:
- Special equipment/fixture (modular clamping system) for milling profile materials with an automatic cut-off device for workpieces using a circular saw module. (non-functional)
- Horizontal workpiece clamping (positive mechanical clamping) with vise clamping system and parallel bars (currently approx. 80 mm)

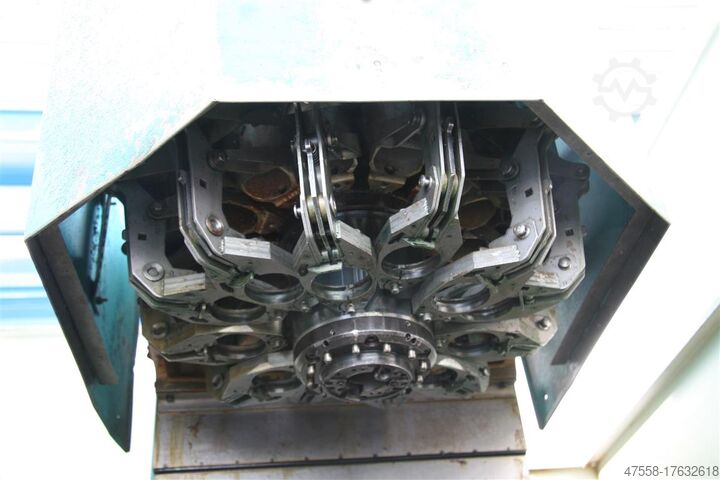

- Tool changer: Chiron basket-type tool changer
- Tool clamping mechanically locked, retention force 5000N
- Chip conveyor by Knoll
Codpfeu Idnmex Abtjhc

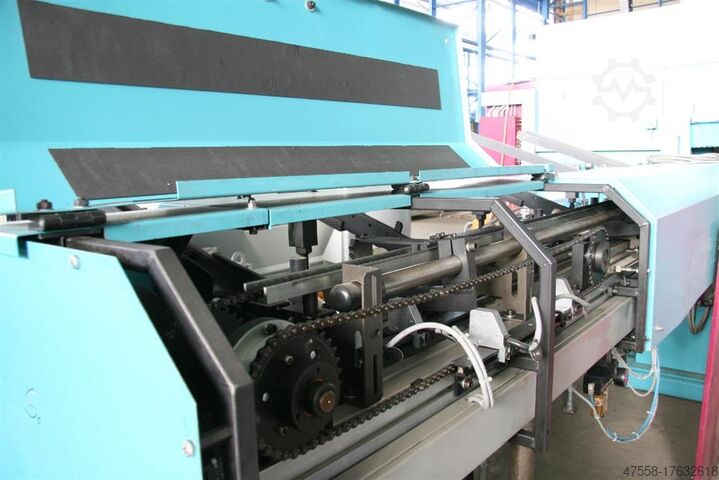

- Loading and unloading system FMB LM RP 3000

The machine is not operational. Sale is at clearance price.
