Testovací pult, testovací stanica, meracia stanica, testovacie zariadenie, merací prístroj, tester n

ELABO PE/IS/HV / 91-3J.3 + SHV 16 / 90-1V.3 + 90-9B.3ZM9

Test bench, testing station, measurement station, test instrument, measuring device, tester for HV, PE, and insulation measurement
ELABO type PE/IS/HV / 91-3J.3 + SHV 16 / 90-1V.3 + 90-9B.3ZM92510
High-voltage test device

The PE/IS/HV / 91-3J.3 unit is used for measuring dielectric strength, insulation resistance, and protective conductor voltage drop in accordance with VDE0113 or IEC regulations per EN60204, Part 1.

Serial no.: Year of manufacture: 2003
Rated voltage: 230 VAC
Rated frequency: 50 Hz
Cjdpfxsd Dc Uns Abtehc
Rated current: 6.3 A
- Protective conductor resistance measurement
- Insulation resistance measurement
- Protective conductor voltage drop measurement

The SHV 16 / 90-1V.3 unit delivers a highly stable DC voltage with low ripple. One output terminal provides high voltage, the other is reference-grounded and can be set to a potential of up to 300 V max.

Serial no.: Year of manufacture: 2005
Mains voltage: 230 VAC
Mains frequency: 50 Hz
Rated current: 1 A
Interference suppression: VDE 0871 compliant
Power rating: 14 watts
Output voltage: 0 – 6.0 kV DC
Output current: 0 – 2 mA

Connection unit for ELABO tester, switching matrix, connector unit
ELABO Type 90-9B.3ZM92510
Serial no.: 0063475
Rated voltage: 230 VAC
Rated frequency: 49 – 61 Hz
Rated current: 1 A
Number of test points: 5

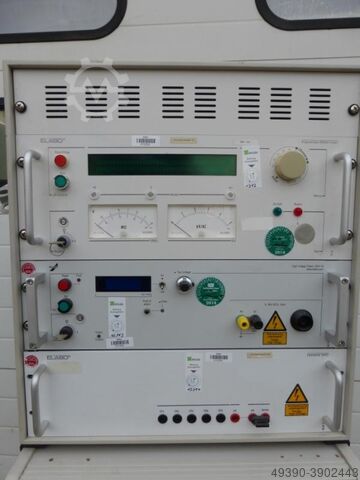

- Unit mounted compactly on mobile frame
- Various connection cables and accessories as shown
Overall dimensions (L x W x H): 580 x 700 x 1460 mm
Total weight: 100 kg
Good condition

Many other ELABO devices available under stock numbers 57820 and 57821.
