Zvárací stôl

GERD WOLFF Schweißtisch Werkbank

Stav: nový, Rok výroby: 2025, nosnosť: 2 000 kg, Protec KT 2000 HV, hydraulicky nastaviteľný výškovo Nosnosť 2000 kg Ručné diaľkové ovládanie s digitálnym displejom Duálny nožný ovládač Gsdpfx Afencfvhotjbg Výška cca min. 800 mm naklonená do stredu, max. výška 1400 mm Min. výška v horizontálnej polohe 1000 mm Priemer upínacieho kotúča 1200 mm Minimálny uhol sklopenia 135° Rýchlosť 0,05 až 0,9 ot/min Výkon motora 3 kW

Stav: nový, Optimum OPTImill MZ 2S Milling Machine Equipped with a digital 3-axis position display DP 700 by NEWALL. The feed axes are inverter-driven and controlled via the operator panel. Versatile Applications Excellent vibration damping and stability of the machine frame All guides are hardened, precision-ground, and adjustable via gib strips Automatic feed on X, Y, and Z axes, continuously adjustable via the electronic joystick on the control panel Electronic feed limit stop Ball screw drives on all axes Centrally and clearly arranged control panel with integrated digital position and speed display Massive, large-format cross table with precision-machined surface and 5 T-slots Coolant system Large dimensioned handwheels with scales Machine lamp Smooth running Manual central lubrication system TECHNICAL DATA Dimensions and Weight Length (approx.): 1239 mm Width/Depth (approx.): 1168 mm Height (approx.): 1900 mm Weight (net, approx.): 1400 kg Gjdpfx Afsfnh Sgjtobg Drilling/Milling Head Head swivel range: ±90° Drill-Milling Capacity Max. cutter head size: 100 mm Drilling capacity in steel (S235JR): 30 mm Continuous drilling capacity in steel (S235JR): 26 mm Max. shank milling cutter size: 25 mm Electrical Data Drive motor power: 2.2 kW Connection voltage: 400V Mains frequency: 50 Hz Horizontal Milling Table Table length: 750 mm Table width: 320 mm Vertical spindle to horizontal table min.: 75 mm Vertical spindle to horizontal table max.: 410 mm Horizontal table T-slot size: 14 mm Number of T-slots: 5 T-slot spacing: 63 mm Horizontal spindle to horizontal table min.: 70 mm Horizontal spindle to horizontal table max.: 400 mm Max. load capacity on horizontal table: 285 kg Vertical Milling Table Table length: 830 mm Table width: 250 mm T-slot size: 14 mm Number of T-slots: 2 T-slot spacing: 63 mm Coolant System Coolant pump power: 95 W Travel Manual travel X-axis: 400 mm Manual travel Y-axis: 200 mm Manual travel Z-axis: 335 mm Automatic travel X-axis: approx. 310 mm Automatic travel Y-axis: approx. 160 mm Automatic travel Z-axis: 295 mm Vertical Spindle Vertical spindle overhang: 100 mm Vertical spindle taper: ISO 40 DIN 2080 Vertical spindle speed range: 50 – 1,890 rpm Number of speed ranges: 12 steps Drawbar: M16 Quill stroke: 120 mm Max. vertical spindle torque: 1,100 Nm Feed Speed Feed speed X-axis: 10 – 600 mm/min Feed speed Y-axis: 10 – 600 mm/min Feed speed Z-axis: 10 – 600 mm/min Electrical Connection Total connected load: 4 kW Motors Rapid traverse X-axis drive motor: 0.375 kW Rapid traverse Y-axis drive motor: 0.375 kW Rapid traverse Z-axis drive motor: 0.375 kW SCOPE OF DELIVERY: Adapter ISO 40/MK3 Arbors MK1 and MK2 Horizontal milling spindle Ø 27 mm Operating tools

Stav: nový, Table length 2400 mm Table width 1200 mm Table height (side surface) 200 mm Weight 981 kg Required space approx. 2400 x 1200 mm SIEGMUND Authorized Dealer – all items available! !! SPECIAL PROMOTION !! SIEGMUND Welding Table Retro 2400x1200x200 incl. accessories SIEGMUND welding table as it was 25 years ago with plasma nitriding and current table legs Product description - High-quality steel S355J2+N + plasma nitrided - Material thickness approx. 24.5 – 27 mm - Boreholes Ø 28 mm - Borehole pattern on surface 100x100 mm grid - Rounded corners, edges, and bores - Side panel height 200 mm - Boreholes in side panel arranged diagonally - Rib-reinforced construction - Grid lines enable precise setups Gjdpfxexflfto Aftjbg The welding tables come standard with a scale. Plasma-nitrided version: - Protection against rust / scratches / welding spatter adhesion - Corrosion resistant / increased load capacity Equipment: - 28 mm grid pattern / dimensions 2400 x 1200 x 200 mm - Plasma-nitrided version with scale - Incl. 4x base feet - Including accessory set (see image 3): * 6x 280604 * 12x 280511 * 8x 280420.N * 2x 280110.N * 1x 283999

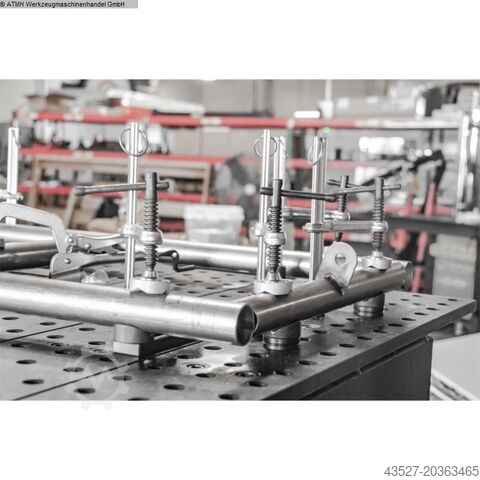

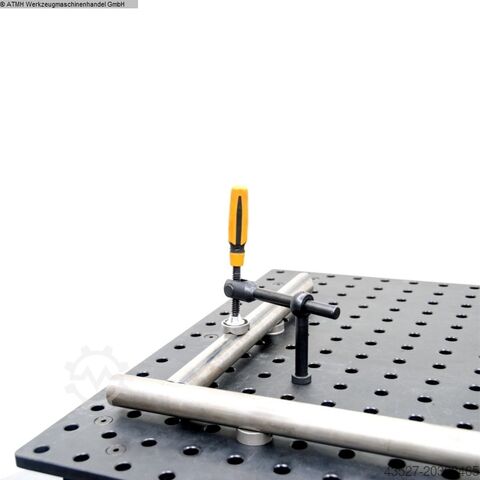

Stav: nový, Quantity: 70 items Weight: 90 kg Condition: new Hole diameter: 28 mm WMT Set 7: 70-piece, 28mm system, consisting of: 3x D28 Tube Screw Clamp 90° – . 4028397 3x D28 Tube Screw Clamp 180° – . 4028396 3x D28 Tube Screw Clamp 45° – . 4028398 3x D28 Tube Screw Clamp 300x150 – . 4028399 3x D28 Tube Screw Clamp 300x200 – . 4028400 15x D28x50 Ball Lock Pin – . 4027663 10x D28x80 Locating Pin – . 4028876 4x D28 Universal Stop 100x50x25 mm – . 4028469 4x D28 Universal Stop 150x50x25 mm – . 4028470 4x D28 Universal Stop 225x50x25 mm – . 4027657 2x D28 Universal Stop 300x50x25 mm – . 4027659 2x D28 Clamping Angle 75x50x75x25 mm – . 4028657 2x D28 Clamping Angle 175x50x75x25 mm – . 4028658 2x D28 Clamping Angle 175x50x175x25 mm – . 4028649 2x D28 Clamping Angle 175x50x75x25 mm – . 4028652 Gsdpfxewth N Tj Aftjbg 2x D28 Clamping Angle 175x50x175x25 mm – . 4028653 2x D28 Clamping Angle 275x50x175x25 mm – . 4028654 1x D28 Clamping and Stop Angle Set 300 x 275 x 100 mm (1x left, 1x right) – . 4028847 2x D28 Flat Angle 175x175x25 mm 1x slotted hole + 3x round holes – . 4028655

Stav: nový, Rok výroby: 2025, Table length: 1000 mm Table width: 2000 mm Table height: 200 mm Weight: 650 kg Manufacturer: GERD WOLFF Technical details: • Length: 2000 mm • Width: 1000 mm • Height: 200 mm • Weight: 650 kg • Bore diameter: 28 mm • Bore spacing: 100 mm • Plate thickness: 25 mm Advantages and features: • 3-day gas nitriding process • Enhanced corrosion resistance • Anti-spatter protection from welding splatter • Maximum load capacity Gsdpfx Aouia Naeftebg • Increased fatigue strength • Increased vibration resistance • Fine graduation scale • Reinforced by weld seams and ribs on the underside • Optimal working height of 820–865 mm • 6x height-adjustable support legs • Comes with matching accessory set (optional) Our welding tables are manufactured in cast iron quality HT 300 and are nitrided as a single piece after mechanical machining. Furthermore, these tables are equipped with a precise fine graduation scale engraved using laser technology. For appropriate stability, our welding tables are reinforced on the underside by weld seams and ribs (see images). Additionally, they undergo a 3-day gas nitriding process, which, among other benefits, increases the corrosion resistance, as well as the fatigue and vibration strength, of the tables. All our tables come with height-adjustable legs. The minimum adjustment range is 620 mm, with a maximum of 665 mm. This allows for a variable working height of 820 to 865 mm. Other available dimensions: • 1000 x 1000 x 200 • 2000 x 1000 x 200 • 1200 x 1200 x 200 • 1500 x 1000 x 200 • 1500 x 1500 x 200 • 1500 x 2000 x 200 • 2000 x 3000 x 200 • 3000 x 1500 x 200 • 3000 x 2000 x 200 • 4000 x 2000 x 200 • 2400 x 1200 x 200 Images do not correspond to the original size and are for illustration purposes only. Our welding tables are manufactured by a renowned supplier for our distribution brand "GERD WOLLF Maschinenfabrik". 3D welding table – 3D clamping systems – 3D precision welding table

Stav: použitý, Brúska na hrany, hránová brúska, brúska - Výška brúsenia: 75 mm - Vzdialenosť medzi vodiacimi kladkami: 700 mm Gjdpfx Aocmh H Ieftsbg - Brúsna dĺžka (topánky): 390 mm - Rozmery: 780/300/výška 520 mm - Hmotnosť: 40 kg

Stav: nový, Rok výroby: 2025, lisovacia sila: 100 t, zdvih: 400 mm, - Zdvih valca 400 mm - Pracovná šírka 1010 mm - Valec je pohyblivý Gjdpfegp Dc Rex Aftebg - Elektrické alebo manuálne ovládanie - Tlakomer - Núdzové zastavenie - 400 V

Stav: nový, Priemer stola 900 mm Zaťaženie stola 1,0 t Rozsah naklápania 135 stupňov Otáčky 0,12 – 1,2 ot./min Výška upínacej dosky 820 mm Zvárací prúd 500 ampér Celkový príkon 0,75 + 0,55 kW Hmotnosť stroja cca 1,1 t Potrebný priestor cca 1,5 x 1,0 x 0,9 m • Samozaisťovacia prevodovka – žiadny predbieh alebo oneskorený beh pri excentrickom zaťažení. • Elektronické komponenty od Schneider, Siemens a Delta. • Plynulo regulovateľná rýchlosť otočného stola riadená frekvenčným meničom. • Vysoká stabilita vďaka robustnej konštrukcii. • Prenos zváracieho prúdu. • CE certifikát. • Veľmi dobrý pomer cena/kvalita. • Rad D-HBE je v štandardnom vyhotovení dodávaný s káblovým diaľkovým ovládaním a nožným spínačom. Gbjdpfsfv Axxjx Aftog

Rok výroby: 2019, Stav: použitý, Technické detaily: Ovládanie: Sinterit Studio 2019 Open Napätie: 220/50 V / Hz Celkový príkon: 1,0 (max. 1,8) kW Hmotnosť stroja cca: 90 kg Rozmery: 690 x 510 x 900 mm SLS laserový systém IR laserová dióda 5 (W) Maximálna tlačová vzdialenosť (diagonálne): 316 mm Flexa/TPE – vysoká presnosť, max. tlačový objem 110 x 150 x 250 mm PA – vysoká presnosť, max. tlačový objem 90 x 130 x 230 mm Presnosť X/Y: 0,05 mm Veľkosť stola/pracovný priestor: 150 x 200 x 260 mm zabudovaná dusíková komora Spotreba dusíka: 0,48 m³/h Vyhrievací systém s max. teplotou komory: 200°C Príslušenstvo: Sklenená platňa (ochranné sklo pre laser) 1x USB (prístup k softvéru), softvér Sinterit Studio 2019 open, podporované formáty STL, OBJ, 3DS, FBX, DAE, 3MF, operačný systém MS Windows Žiarovky (sada infračervených ohrievačov 24V) rôzne fľaše s polyamidovým práškom rôzne drobné diely Gsdpfeu N Auusx Aftsbg

Stav: nový, Rok výroby: 2025, Heavy, solid cast iron construction High smooth running thanks to ground gears running in an oil bath Right/left-hand rotation Automatic quill feed with manual fine feed Motorized positioning of the Z-axis Motorized table feed on the X-axis Coolant system Machine lamp Gear head swivels ± 60° Adjustable gib strips Massive hand-scraped dovetail guide of the column for maximum stability and highest precision Height-adjustable, large dimensioned safety screen with microswitch Drilling depth stop Digital position display DRO 5 Drilling/tapping function Heavy-duty, large cross table, precisely surface machined with T-slots and adjustable gib strips Heavy machine base made of cast iron with chip tray Single-stage quality industrial electric motor Wide speed range from 60 – 2,760 rpm via 2 infinitely variable speeds Dimensions and weights Length approx. 1600 mm Width/depth approx. 930 mm Height approx. 2110 mm Weight approx. 495 kg Drilling/milling capacity Max. cutter head size: 63 mm Max. shank cutter size: 26 mm Drilling capacity steel (S235JR): 24 mm Continuous drilling capacity steel (S235JR): 20 mm Electrical data Connection voltage: 230 V Mains frequency: 50 Hz Gbodpfx Ajg U Uv Ueftjg Electric connection Total connected load: 1.5 kW Milling table horizontal Length: 800 mm Width: 240 mm Distance vertical spindle – milling table max.: 420 mm T-slot size: 14 mm T-slot number: 3 T-slot spacing: 80 mm Standards and approvals Standard: DIN EN 55011 EMC class: C2 Travel X-axis manual: 560 mm Y-axis manual: 195 mm Z-axis manual: 350 mm X-axis automatic: 480 mm Vertical spindle Spindle clearance: 258 mm Spindle mount: MT 4 Speed range: 60 – 2760 rpm Number of speed ranges: 2 Speed control: electronic Drawbar: M 16 Swivel range milling head Z – X plane: ± 45 ° Quill diameter: 75 mm Quill stroke: 120 mm Location: In stock at 54634 Bitburg - immediately available -
