CNC sústruh s osou C

HEADMAN T55M/500

SIEMENS 828D CNC control with Shopturn, 17-inch touch screen

Swing diameter over bed: 550 mm
Maximum machining length: 428 mm
Maximum machining diameter: 300 mm
Spindle bore: 62 mm
Bar machining: 51 mm
Spindle nose: A2-6
Spindle speed range: 35 - 5000 rpm (motor spindle)
X-axis travel: 210 mm
Z-axis travel: 561 mm

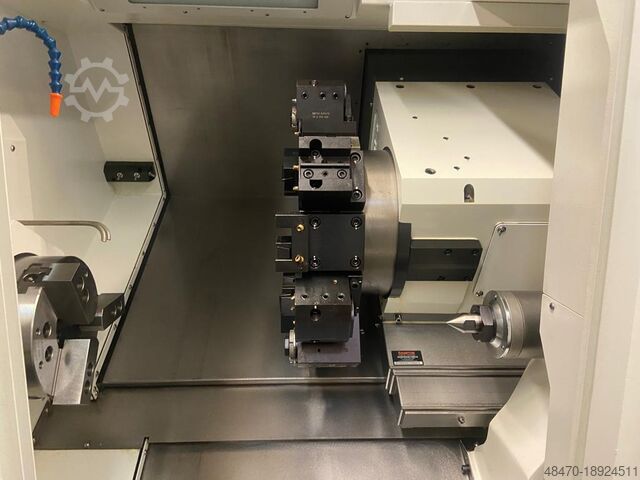

Tool changer for driven tools: 12 positions
Cjdpfxswbu T Us Agwsrh
Tool changer locking: hydraulic
Tool changer drive: servo
Tool change time: 0.2 seconds
Tool holder size: 25 x 25 mm
Driven tools max. speed: 5000 rpm
Driven tools max. power: 5 kW
Max. slot milling capacity: 16 mm (end mill)
Max. face milling capacity: 50 mm (face mill)
Max. drilling capacity: 16 mm
Max. thread cutting capacity: M16x2
Rapid traverse (Z-axis): 30 m/min
Rapid traverse (X-axis): 30 m/min
Positioning accuracy: 0.008 mm
Repeatability: 0.003 mm

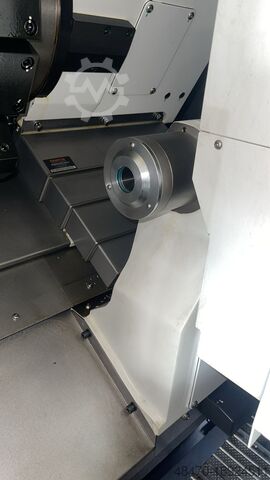

Tailstock: optionally programmable
Quill taper: Morse taper 4
Tailstock travel incl. quill stroke: 565 mm
Hydraulic unit tank capacity: 20 liters
Hydraulic unit pump capacity: 1.5 kW
Hydraulic unit operating pressure: 3.5 - 6 MPa
Central lubrication tank capacity: 2 liters
Central lubrication power: 25 W
Coolant tank capacity: 130 liters
Coolant pump power: 25 W
Continuous motor power: 11 kW, 400 Volt, 50 Hz
Peak motor power (30 min): 15 kW, 400 Volt, 50 Hz
Weight: 4000 kg
Dimensions: 2600 x 1685 x 1768 mm

Accessories, equipment:

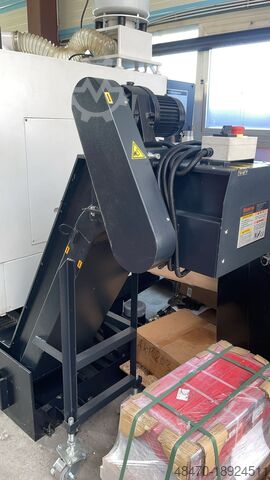

Coolant system, 12-position driven tool turret, 200 mm hydraulic chuck, linear guides and ball screws by THK/Japan, Siemens 828D control, spindle cooling, chip conveyor, workpiece measurement, automatic tool length correction, bar feeder, blow-off function for tool turret and chuck, spindle, high-pressure cooling, oil separator, part catcher.

Inzercia bola automaticky preložená a vyskytli sa nejaké chyby prekladu.
