Brúska na hrany

Holzkraft KSO 200 F

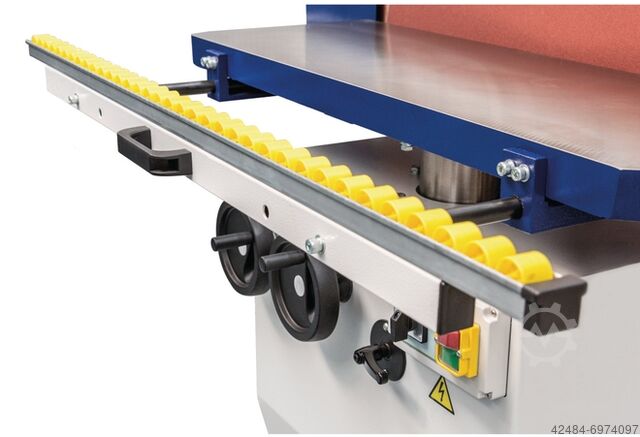

Stav: nový, Rok výroby: 2024, Holzkraft Edge Sanding Machine Model: KSO 200 F with Veneer Sanding Attachment Sanding unit tiltable up to 45° via lever The welded steel machine base ensures high torsional rigidity and vibration-free operation. Oscillating sanding belt driven by a separate gear motor for improved sanding results Oscillation can be switched on or off as required Graphite-coated sanding platen for extended belt life Height-adjustable sanding table for use of the full belt width Height-adjustable auxiliary table with extraction for sanding radii Spring-loaded belt tension automatically compensates for belt length differences. Equipped with dual dust extraction Extendable roller table extension With rubber-coated sanding roller Veneer edge sanding device with contact shoe featuring fine adjustment, support rollers and stop rulers With grooved infeed ruler for excess veneer Quick changeover between veneer edge sanding and solid wood sanding Dimensions and weights Length approx. 1900 mm Width/depth approx. 900 mm Chodpfxslht H Ne Abtoc Height approx. 1350 mm Weight approx. 290 kg Dust extraction connection Extraction port diameter 140 / 100 mm Drive power Oscillation motor 0.25 kW Work table(s) Work table length 960 mm Work table width 350 mm Work table height adjustment 230 mm Minimum height 735 mm Maximum height 965 mm Main table height adjustment 230 mm Cross table length 330 mm Cross table width 330 mm Cross table minimum height 720 mm Cross table maximum height 900 mm Cross table height adjustment 180 mm Electrical data Main drive motor power 3.0 kW Supply voltage 400 V Sanding unit Sanding belt length 3000 mm Sanding belt width 200 mm Belt speed 20 m/s Sanding area length 1050 mm Sanding area width 200 mm Oscillation stroke 20 mm Location: In stock at 54634 Bitburg - immediately available -

Stav: nový, Rok výroby: 2022, New machine Year of manufacture: 2022 Scope of delivery: Table extension Rubber rollers with veneer edge sanding device and contact shoe with fine adjustment and stop rulers Cedpfxow I Up Us Abtohc with grooved infeed ruler for veneer overhangs Quick changeover from veneer edge sanding to solid wood sanding possible Length (product) approx.: 1900 mm Width/depth (product) approx.: 900 mm Height (product) approx.: 1350 mm Weight (net) approx.: 290 kg Oscillation motor power: 0.25 kW Extraction port diameter: 140 / 100 mm Longitudinal table height adjustment: 230 mm Cross table height min.: 720 mm Worktable length: 960 mm Worktable width: 350 mm Worktable height adjustment: 230 mm Connection voltage: 400 V Phase(s): 3 Ph Current type: AC Mains frequency: 50 Hz Sanding belt length: 3000 mm Sanding belt width: 200 mm Belt speed: 20 m/s Oscillation stroke: 20 mm Sanding area length: 1050 mm Sanding area width: 200 mm Incl. 1 package sanding belts K 80 1 package sanding belts K 120 Availability: short-term Warehouse location: Hochheim

Stav: nový, Kantenschleifmaschine HOLZKRAFT KSO 200 F - Výstavný stroj - Odľahčovacie valčeky na dorazových pravítkach, s výkyvnou brúsiacou jednotkou a oscilujúcim brúsnym pásom, Zariadenie na brúsenie dyhy, Oscilácia so samostatným motorom, výškovo nastaviteľný brúsny stôl, vyťahovateľné valčekové rozšírenie stola, gumovaný brúsny valec ----- Technické údaje ----- Rozmer brúsneho pásu: 3 000 x 200 mm, Rozmer pracovného stola: 960 x 350 mm, Nastavenie výšky pracovného stola: 230 mm, Cjdpfx Absu R S Erstjhc Brúsna plocha: 1 050 x 300 mm, Rýchlosť pásu: 20 m/s, Oscilačný zdvih: 20 mm, Priemer odsávacej prípojky: 140 mm, Motor 400 V: 4,0 HP / 3,0 kW, Rozmery (D x Š x V): 1 900 x 900 x 1 350 mm, Hmotnosť: 290 kg - nový výstavný stroj -

Stav: nový, - New - with swiveling sanding unit and oscillating sanding belt, F-version for veneer sanding Description: - Sanding unit swivels up to 45° via lever - The machine frame, made from welded steel, ensures high torsional rigidity and vibration-free operation - Oscillating sanding belt with separate gear motor for improved sanding results - Oscillation can be switched on as required Chedpovwgbwofx Abtoc - Graphite-faced sanding shoe for increased belt service life - Height-adjustable sanding table for full utilization of the belt width - Height-adjustable auxiliary table with dust extraction for sanding radii - Spring-loaded belt tension compensates for differences in belt length automatically - Double extraction ports - Extendable roller table extension - Rubber-coated sanding drum - Veneer edge sanding device with contact shoe, fine adjustment, relief rollers, and fence rulers - Infeed fence with grooves for veneer overhang - Fast changeover from veneer edge sanding to solid wood sanding possible Technical Data: Dimensions and Weights: Length approx. 1900 mm Width/Depth approx. 900 mm Height approx. 1350 mm Weight approx. 290 kg Extraction Connection: Extraction port diameter 140 / 100 mm Drive Power: Oscillation motor 0.25 kW Work Table(s): Work table length 960 mm Work table width 350 mm Work table height adjustment 230 mm Longitudinal table height adjustment 230 mm Minimum cross table height 720 mm Electrical Data: Connection voltage 400 V Mains frequency 50 Hz Sanding Unit: Sanding belt length 3000 mm Sanding belt width 200 mm Belt speed 20 m/s Sanding area length 1050 mm Sanding area width 200 mm Oscillation stroke 20 mm Item no. 5363001
