Stroj na olepovanie hrán

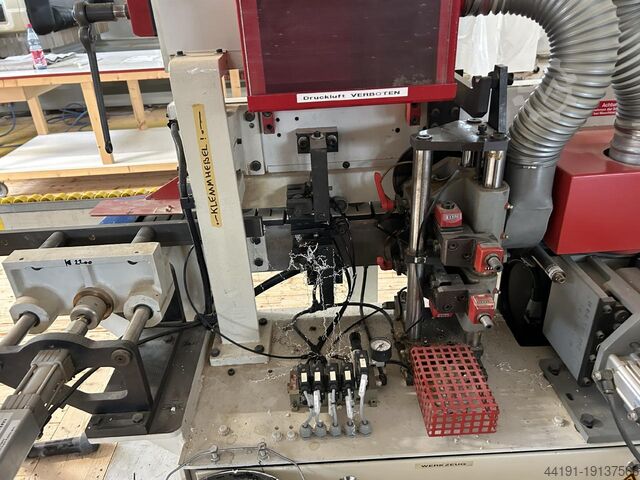

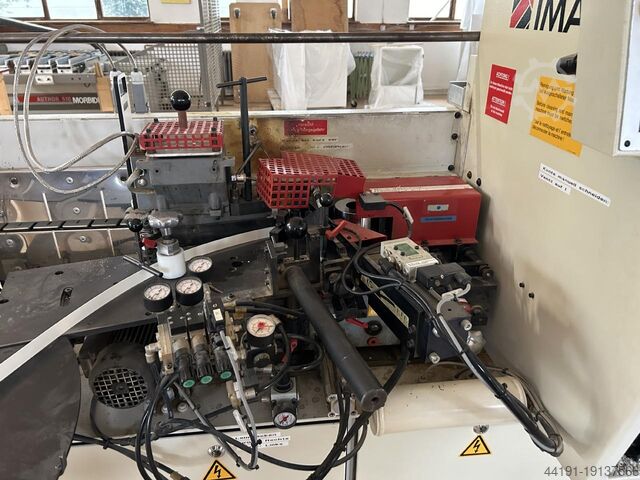

IMA Quadromat 3512 F

Edge banding machine

Chsdpfx Abewkba Tstsc
Year of manufacture: 1998

With a length of 5500 mm, the Quadromat is the shortest edge processing machine that allows for complete edge material processing thanks to its integrated workpiece return system. The machine processes not only the longitudinal edges but also copies the end edges, thus completing the machining process. The finished workpiece is returned to the operator, eliminating the need for manual reworking.

Equipped with PLC control with up to 20 processing programs

Workpiece dimensions:

Minimum width: 60-80 mm (depending on edge material)
Minimum length: 150 mm
Workpiece thickness: 10-50 mm
Edge material thickness: 0.4-12 mm
Minimum edge material length: 400 mm
Feed speed: 18 m/min

Features:
- 2 jointing milling motors
- Multifunctional milling unit (flush, bevel, radius)
- Scraping blade
- Crosscut saw
- 2 glue pots (for transparent and white) and 1 spare pot

Compressed air connection: 7-10 bar
Extraction connection: 160 mm
Weight: approx. 2400 kg

Availability: short notice
Location: Flörsheim
