Interiérový simulačný box

IPETRONIK IPETRONIK Innenraumsimulationsbox

IPETRONIK Interior Simulation Box
We offer you an IPETRONIK interior simulation box for sale.

Technical data and system description:
IPETRONIK Interior Simulation Box (new and unused)
The interior simulation box is designed to simulate the passenger compartment for recirculation mode tests.
It features an adjustable interior volume from 1.8 to 4 m³.
The exhaust air flow from the front evaporator or A/C system is regulated and directed into the interior.
With this interior simulation box, only rear evaporators installed in the passenger compartment are tested.

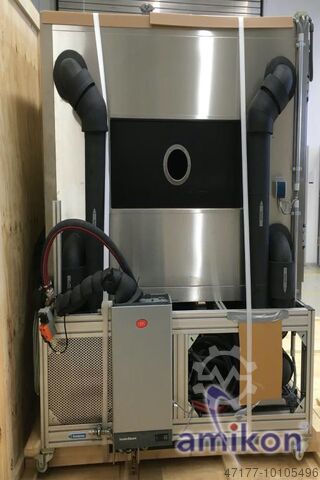

The insulated enclosure is mounted on a castor-mounted aluminium profile frame.

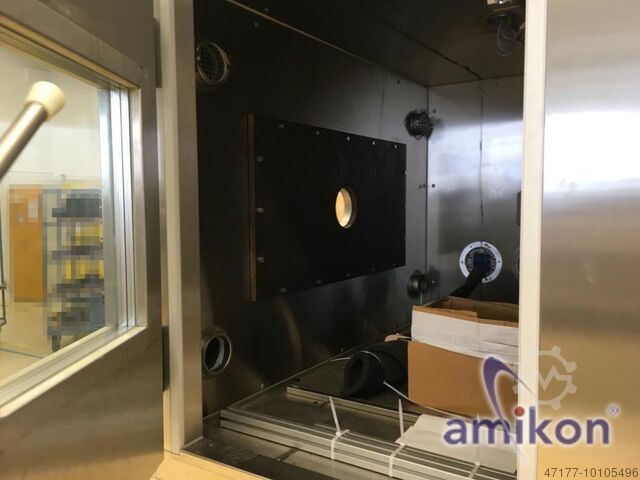

A light is installed inside the chamber.
The box is protected against overheating by a safety thermostat (Esti).
If the permissible temperature is exceeded, a glass cartridge in the ESTI is destroyed and the system is shut down.
(TRIP TEMPERATURE: 80°C)

Technical data of the insulated chamber:
Dimensions:
External: Width 1,860 mm, Depth 2,360 mm, Height 1,360 mm
Internal: Width 1,700 mm, Depth 2,200 mm, Height 1,200 mm

Insulation:
80 mm rigid polyurethane foam, CFC-free, U-value 0.27 W/m²K, building material class B1 according to DIN 4102

Technical data and description of the unit:
Connections: Tongue-and-groove system with foam-embedded eccentric fasteners

Surfaces:
Both sides: 0.8 mm stainless steel sheet 1.4301, ground, grain 320

Floor design:
2.0 mm stainless steel sheet 1.4301, SM-pattern, slip-resistant
Floor edges raised by 90° (approx. 15 mm), floor sheet flush with wall panel
Load distribution plate made from laminated wood, supports 1,500 N/rubber wheel (bearing surface > 4 cm²)
30,000 N/m² surface load, fully welded floor joints, welded-in stainless steel drain pipe passes through floor

Chamber door:
Hatch door, single-leaf, 800 x 1200 mm (clear), DIN left, heated door frame (230 V)
Silicone-free heating tapes, 4-sided EPDM sealing profile
Lever lock, lockable, emergency release
Heated viewing window, 500 x 500 mm, triple glazed
Surface heater (230 V), frame heater (230 V), heating regulation provided on-site
Silicone-free edge trim

Sliding wall:
1,680 x 1,180 mm, 80 mm rigid polyurethane foam, both sides 0.8 mm stainless steel sheet 1.4301, ground, grain 320, with protective film, perimeter edged with sheet metal
(The rear wall is manually adjustable to change the internal volume continuously)

Recirculation air system:
For temperature control, a heat exchanger (Systemair) is installed in the recirculation air duct for indirect temperature regulation.
Air is circulated by a centrifugal tube fan (Cosmo). Heating is provided by an electrical heater (Türk and Hillinger) integrated in the brine circuit.
The heaters are continuously monitored by temperature controllers and limiters (Türk and Hillinger, Johnson Controls).
Cooling is via a secondary brine circuit with pumps (KSB) and a 3-way valve (Belimo).
Installed electrical heating capacity 1 × 6kW.
The mixing ratio is 50% water / 50% ethylene glycol.
Mains supply from station: =TME2++AS-QF21

Operating voltage: 400V
Power: 17kW
Rated current: 33A
Main fuse: 35A
Control voltage: 24V DC / 24V AC / 230V AC
Credslypy Eepfx Agweh
PLC system: S7 300
Type: IPETRONIK Interior Simulation Box
Condition: used
Scope of supply: (see pictures)
(Technical data subject to change and errors excepted!)
For further questions, please feel free to contact us by phone.
