Kaltenbach KKS 401 NA

Kaltenbach KKS 401 NA 2000 Retrofit
Chodew Eyynjpfx Abtsc

Model: KKS 401 NA
Year of Reconditioning: 2021

Complete retrofit and overhaul carried out in 2021, including new electrics, control system, drives—everything renewed.

Saw Motor: 5.5 kW, frequency-controlled
Saw Blade Speed: 20–76 rpm
Blade Cutting Speed (400mm): 25–96 m/min

Working Range (round): 135 mm
Working Range (square, max.): 130 x 130 mm
Working Range (rectangular, max.): 230 x 80 mm

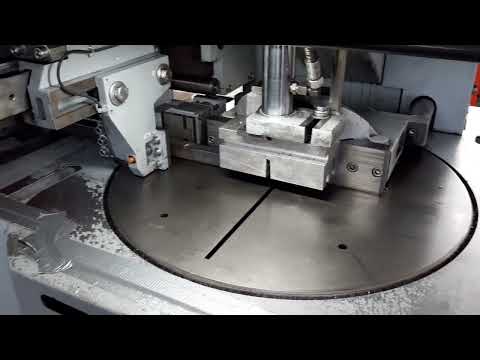

Kaltenbach KKS 401 mit NC-controlled mitre adjustment

Kaltenbach RKS 451/ KKS 401 feed extension 2000 mm
Extended feed length for efficient processing of especially long sections.

Flat magazine for 6 m steel materials, 6x2 m
- For pre-loading round, square, and profile materials
- System configured for materials up to 200 mm in width (compartment width adjustable)
- Material intake via chain conveyor with loadable compartments
- Material separation by compartments
- Fully automatic loading process controlled via Siemens PLC of the saw
- Manual material adjustment at the magazine
- Magazine load capacity max. 2.0 tons
- Material loading possible from front side
- Safety enclosure with light barrier
- Total length approx. 7.5 m
- Total width approx. 2.5 m

Kaltenbach RKS 451/ KKS 401 chip conveyor

Minimal quantity lubrication by Menzel and recirculating cooling system with integrated pump
- Can be switched between minimal and recirculation lubrication in the machine settings

Remote maintenance module, interface for machine access and remote updates by Lupberger Systemlösungen OHG

Prepared for discharge system installation
- Hardware prepared for future installation of a discharge system

Saw cycle control
- Operation is cycle-controlled by the user
- Entry required for the entire bar in a structured user interface
- Fetch material (with optional cut-off flap or magazine)
- Relative positioning
- Absolute positioning
- Absolute cutting with mitre selection (option: NC-controlled mitre and pusher feeder)
- Relative cutting with mitre selection (option: NC-controlled mitre adjustment)
- Sweeper function (option: sweeper arm and material disposal unit)
- Material ejection to front
- Material ejection via flap (with pusher feed and flap option)
- Repetitions
- Program end

Fully functional, excellent general condition.
Can be viewed and tested under power.

Price: Negotiable, plus VAT (no warranty)
