Centrum presného merania

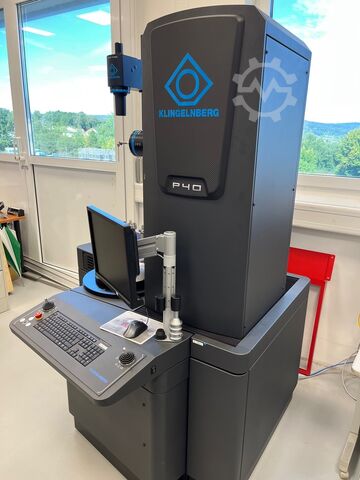

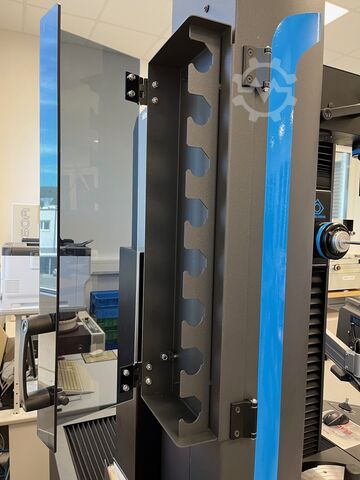

Klingelnberg P40

TECHNICAL DETAILS

Workpiece Data
Module range: min. 0.3 mm – max. 20 mm (0.1 – 20 mm)
Helix / Lead angle: min. 0° – max. 90°
Gear inspection diameter between centers: max. 400 mm
Workpiece diameter: max. 490 mm
Vertical measuring range (Z-axis): 550 mm (700 mm)
Horizontal measuring range / Roll length (X-axis): ±115 mm
Permitted mass moment of inertia: max. 5 kg m²
Permitted workpiece weight: max. 300 kg
Cjdpsxamnrofx Abtohc
Center distance: min. 50 mm – max. 800 mm (50 – 1,000 mm)

Diagram Recording
Magnification: 50x / 100x / 200x / 500x / 1,000x / 2,000x / free input possible
Longitudinal magnification: 0.5x – 1x – 2x – 4x – 5x – 10x – 20x

Machine Accuracy
VDI/VDE 2612 Part 1 and 2 as well as 2613 Group I
at +18 °C to +22 °C, reference temperature 0.5 K/h; 2 K/d; 2 K/m
MPEE0 ISO 10360-2 (2010): 1.8 + L/450 mm
VDI2631 Radial guideway deviation: 0.2 µm
Roundness Ø100/L: 0.3 µm
Flick 15W/U/L: 1.5 µm
Flick 50W/U/L: 1.5 µm
Straightness Ø70/L: 0.4 µm
Coaxiality: 1.2 µm
Total runout: 1.5 µm

Machine Accuracy
at +15 °C to +35 °C
Reference temperature: 2 K/h; 12 K/d; 2 K/m
MPEE0 ISO 10360-2 (2010): 1.8 + L/250 mm
VDI2631 Radial guideway deviation: 0.4 µm
Roundness Ø100/L: 0.5 µm
Flick 15W/U/L: 1.8 µm
Flick 50W/U/L: 1.8 µm
Straightness Ø70/L: 0.6 µm
Coaxiality: 1.4 µm
Total planar runout: 1.8 µm

Evaluation Software
Spur gears – external and internal helical gearing up to 60°
Standards: DIN 3960 / 3962, free tolerances, AGMA 2015, ANSI B92.1, DIN 5480, ISO 1328:1995, JIS B1702:1998, JIS B1702:2016, GBT 10095:2008, ISO 1328:2013
Functions: Profile and flank line, tooth thickness variation, pitch measurement and two-ball measurement, crown, bevel, trapezoidal and bevel gear teeth
Root and tip circle measurements, determination of tip and root diameter over up to six teeth, or up to four teeth at three measuring heights, or all teeth at a single height on a special measuring sheet

Gear Measurement
Contact ratio measurement: 3 x profile and 3 x flank line
Topography: 10 profiles x 10 flank lines (30 x 30 grid points)
Measurement of all teeth on a separate special measuring sheet
Block gear measurement: up to 10 sets of gearing
Alignment measurement: up to six gearings including apex determination
Storage formats: ASCII format, ASCII mka-file, ASCII csv-file (grid point deviation)
Storage capacity: up to 5,000 workpiece measurement programs

MACHINE DETAILS
Net weight incl. standard accessories: approx. 2,150 kg
Net weight with active vibration damping: approx. 2,550 kg

EQUIPMENT

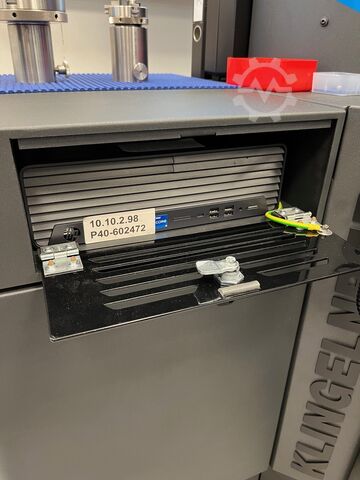

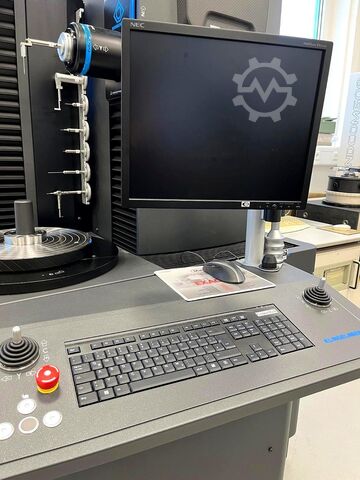

- PC with installed software (currently on machine)

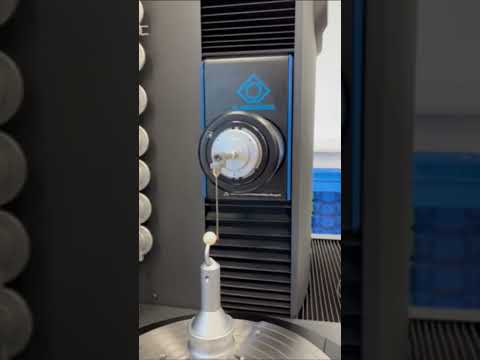

- Probe and extensions included
- 2x calibration spheres
- Surface roughness calibration standard
- 2x 3-jaw chucks for different diameters
- 1x arbour for aligning the upper and lower measuring points
- Stand for dial indicator
- Driver adapter for additional component range
- Transport securing devices
