Plne automatická kovová kotúčová píla

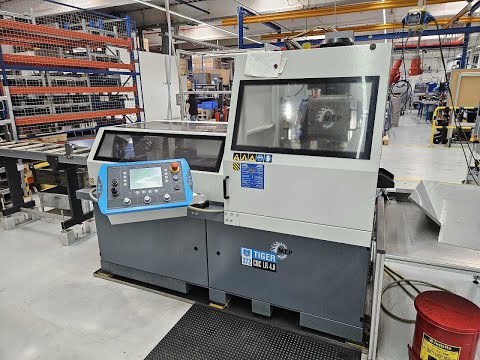

MEP TIGER 372 CNC LR 4.0

Stav: takmer ako nový (použitý), Rok výroby: 2018, prevádzkové hodiny: 2 150 h, Funkcionalita: plne funkčný, MEP TIGER 372 CNC LR 4.0 Metal Circular Saw + CB4001 Magazine High-performance CNC automatic metal circular saw with microprocessor control for cuts from 45° right to 60° left. Manufacturer: MEP Model: TIGER 372 CNC LR 4.0 Year of manufacture: 2018 Condition: very good, lightly used Operating hours: 2128h Cutting time: 1738h Machine equipped with microprocessor control and two CNC-controlled axes, enabling up to 300 cutting programs (each with individual quantity and length) on identical material or material loaded in the CB4001 magazine. Cutting capacity ROUND 0°: 120 mm Cutting capacity ROUND 45° left: 115 mm Cutting capacity ROUND 60° left: 115 mm Cutting capacity ROUND 45° right: 115 mm Cutting capacity SQUARE 0°: 110 mm Cutting capacity SQUARE 45° left: 100 mm Cutting capacity SQUARE 60° left: 90 mm Cutting capacity SQUARE 45° right: 100 mm Cutting capacity FLAT 0°: 180 x 100 mm Cutting capacity FLAT 45° left: 120 x 100 mm Cutting capacity FLAT 60° left: 90 x 90 mm Cutting capacity FLAT 45° right: 120 x 100 mm Speed, infinitely variable: 15 to 150 rpm Motor: 5.5 kW Saw blade: 370 x 32 mm Coolant system Length: 2500 mm Dwodpfx Agowp Hfxonsc Width: 1840 mm Height: 1890 mm Weight: 1060 kg Scope of delivery: – Original documentation – 4x saw blades

Stav: nový, MEP TIGER 372 CNC LR 4.0 Article number: TI372CNCLR Motor power: 4.0 kW Vise opening: 190 mm Blade dimensions: 370x32x3 mm Weight: 1,060 kg Speed: 15–150 rpm Cutting capacity at 0°: 120 / 110 / 180x100 mm Cutting capacity at 45° right: 115 / 100 / 120x100 mm Description: Electromechanical vertical circular saw with semi-automatic function for the use of HSS saw blades, designed for precision cuts from 45° right to 60° left. Equipped with multi-microprocessors and two controlled axes, allowing programming of up to 80 different cutting programs per material thickness, each with variable cutting length and quantity. Standard features: - Saw head glides on double linear ball-bearing guides - Saw head feed with electromechanical cylinder - Rotational axis with thrust bearing - Three-stage gearbox - Material feed (length 1,000 mm) via ball screw and stepper motor with movable feeder vise - Vise opening 190 mm - Programmable saw head stroke via control panel, adjustable for varying materials - Pneumatic vertical vise - HSS DMO 5 saw blade Ø 370x32x3 mm for solid and profile material - Chip removal brush - Machine suitable for pallet truck transport, including tools and user manual Electrical equipment: - Control panel - Up to 80 programmable cutting programs - Operation-ready status indicator - Main safety switch - Programming and control console with LCD display and self-diagnostics - LED function check at control panel - Emergency stop button - Speed selector switch - Thermal magnetic protection - Undervoltage release - IP 55 safety-rated control handle - 24V low voltage system - Electric coolant system for saw blade lubrication and cooling (option for micro-spray unit) - Motor: 4.0 kW, 400 V MEP TIGER 372 CNC LR 4.0 RC with Automatic Mitre Article number: TI372CNC LR 4.0 RC Motor power: 4.0 kW Vise opening: 190 mm Blade dimensions: 370x32x3 mm Weight: 1,060 kg Speed: 15–150 rpm Cutting capacity at 0°: 120 / 110 / 180x100 mm Cutting capacity at 45° right: 115 / 100 / 120x100 mm Description: Automatic electromechanical vertical circular saw, designed for serial cutting operations with automatic mitre angle adjustment between -45° and +45° on steel. In semi-automatic cycle, mitre cuts can be performed between -45° and +60°. Equipped with multi-microprocessors and two controlled axes, allowing programming of up to 80 different cutting programs per material thickness, each with variable cutting length and quantity. Standard features: - Saw head glides on double linear ball-bearing guides - Saw head feed with electromechanical cylinder - Rotational axis with thrust bearing - Three-stage gearbox - Material feed (length 1,000 mm) via ball screw and stepper motor - Movable feeder vise - Vise opening 190 mm - Programmable saw head stroke via control panel, adjustable for varying materials - Pneumatic vertical vise - HSS DMO 5 saw blade Ø 370x32x3 mm for solid and profile material - Chip removal brush Electrical equipment: - Control panel - Up to 80 programmable cutting programs Dwjdpfx Agechkyrenec [Please provide the remainder of the 'Electrical Equipment' section if a complete translation is required.]
