1969 litrový ohrevno/chladiaci chemický reaktorový tank, Aisi 316 s 1,1 kW ex-certifikovaným miešadl

Paul Schwingel GmbH 8091

Location: Bremen
Condition: used
Volume: 1,969 liters
Vacuum: 1.0 bar
Max. overpressure: 3.2 bar
Tank

Max. operating temperature tank / °C: 200°C

Top head: bolted cover
Design: suspended
Tank

Support type: lug feet

Heating/cooling: available
Double-jacket volume: 70.0 liters
Max. permissible operating overpressure: 16.0 bar
Max. permissible operating temperature: 200°C
Cylinder temperature control: half-pipe coil
Heating/cooling jacket

Bottom temperature control: half-pipe coil

Internal diameter: 1,000 mm
Cylindrical height: 2,110 mm
Total height: 3,800 mm
Technical data / dimensions

Bottom wall thickness: 5.7 mm

Cylinder wall thickness: 6 mm
Technical documentation: drawing
Nameplate:
Equipment
Knodpfjxqa Sljx Agujc

Outlet: flange DN80
Note: minor residues present

Remarks: 2 lug feet made of V2A (bearing surface reversed; see photos)
Previous application: pharmaceutical chemicals
Product-contact material: V4A 1.4571 (AISI 316)
Material specification

Temperature control system material: AISI 304 (V2A) 1.4306

Power: 1.1 kW
Speed: 571 rpm

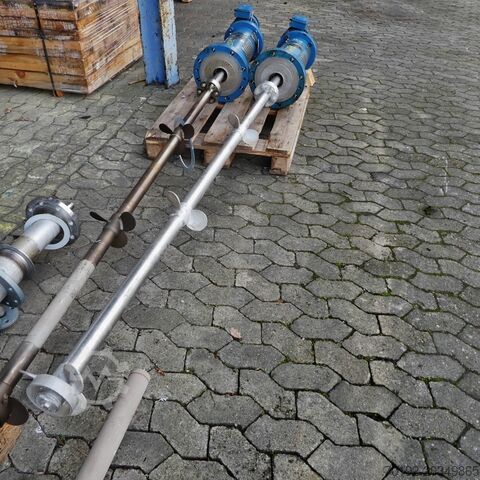

Agitator: propeller
Agitator seal: mechanical seal without thermosiphon vessel
Agitator

Voltage: 220/380 V

Explosion protection: motor is explosion-proof (compliance with applicable ATEX regulations under local conditions must be verified)
Agitator

Agitator arrangement: eccentric in top head
Agitator equipment: technical documentation for agitator available
