Horizontálne obrábacie centrum

SW Schwäbische Werkzeugmaschinen GmbH BA 600 2-CNC, 2-spindlig

BA 600-2 CNC, Horizontal Milling and Drilling Center
SW Schwäbische Werkzeugmaschinen GmbH
Machine No. 166 0821
Year of Manufacture: 2008
Used, operational

Travel Paths:
X-Axis 600 mm
Y-Axis (shuttle position) 600 (975) mm
Z-Axis 500 mm

Control:

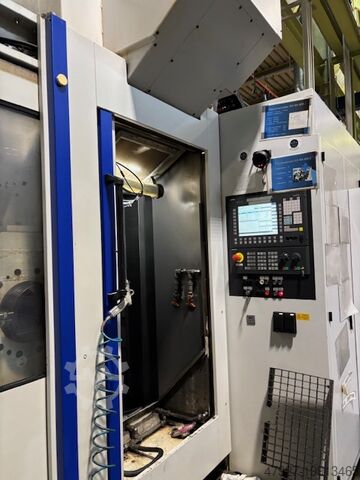

Siemens 840D control, side-mounted

Feed/Rapid Traverse Speed:
X, Y, Z 1 – 45,000 mm/min
Max. Feed Force X, Y, Z 15,000 N

Average Acceleration:
X, Y, Z 2.5 m/s²

Measuring System:
Chsdew U A D Hjpfx Abtec
Absolute linear measuring system X, Y, Z

Spindles:
Spindle Speed (stepless) 20-10,000 rpm
Torque 2 x 363 Nm (S6/40% duty cycle)
Power 2 x 38 kW (S6/40% duty cycle)
HSK-A 100, horizontal twin arrangement
Spindle distance 600 mm
Spindle bearing diameter 100 mm
Motor spindles liquid-cooled, AC technology

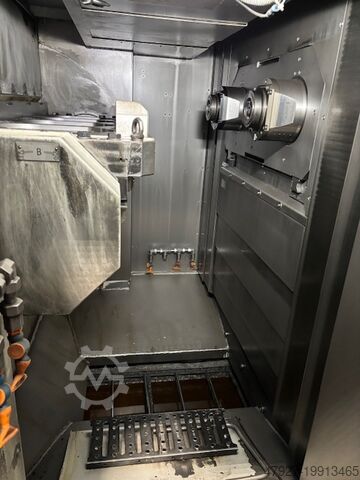

Working Area:
Slew-type carrier with straight-tooth gearing, max. transport load 2,000 kg
Swivel time 0/180 degrees approx. 6.0 sec
Partition wall between machining and loading area

Tool Magazine:
2 x 40 tools HSK-A 100 chain magazine, position-coded
Automatic pickup
Tool change time (chip-to-chip) 4.9 sec.
Max. tool diameter 100 mm
250 mm with adjacent slot free
Max. tool length 350 mm
Max. tool weight 20 kg

Equipment:
Central lubrication
Oil minimum-quantity lubrication (spindle lubrication)
Chip conveyor
Connection for central coolant system

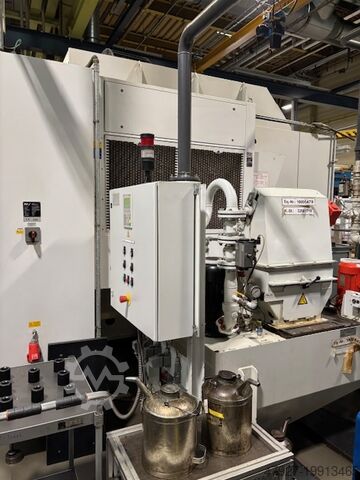

Hydraulic unit
Maintenance unit
Water recooler

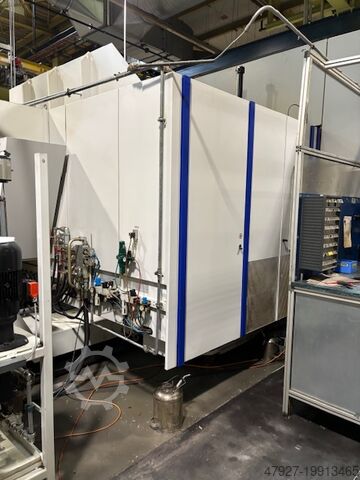

Full enclosure, crane loading possible

Dimensions, with paper band filter:
approx. 5.15 x 8.50 x 4.20 m
Weight: approx. 20,000 kg

Dimensions, without paper band filter:
approx. 5.15 x 6.60 x 4.20 m

Miscellaneous:

- Good condition for its age
- Annual maintenance performed regularly by previous owner

--- Sale without workholding devices ---
--- without foundation parts ---

Immediately available, appointment by arrangement

EXW 72793 Pfullingen,

Disassembled into main components

Transport to installation site by customer/buyer!

Dimensions/Transport dimensions of main machine components:

1 pc Machine unit (X, Y, Z) mm 3800 x 3350 x 3400 approx. 13,000 kg
1 pc Table unit mm 4400 x 2400 x 3400 approx. 10,000 kg
Plus peripheral equipment such as chip conveyor, small parts, sheet metal etc.

Short-term delivery possible!!!!!, appointment by arrangement
