Lakovací systém Venjaob Perfect s 30 paletami Eta

Venjakob VEN SPRAY Perfect

Paint finishing line consisting of:
Fsdpfx Afjv I Akvsmopb

Pos. 1

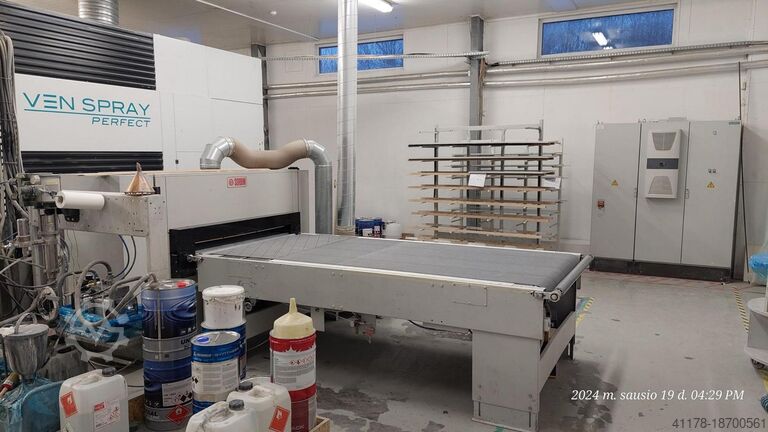

Belt Conveyor Infeed Transport
- Manufacturer: Venjakob
- Working width: 1,300 mm
- Length: 3,000 mm
- Feed rate adjustable via handwheel approx. 2.5 – 7.5 m/min
- Voltage/Frequency: 400 V / 50 Hz
- Colour: RAL 7035

Pos. 2

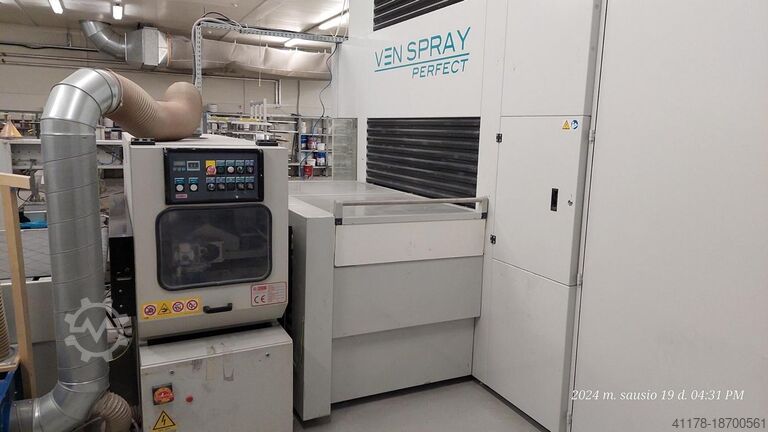

Cefla Dedusting Machine
- Manufacturer: Sorbini
- Model: VS/32-E
- Year of manufacture: 1998
- Working width: 1,300 mm
- Working height: 900 mm +/- 20 mm
- Operator side: right
- Roller conveyor
- Air blast channel, top: 2 pcs.
- Air blast channel, bottom: 1 pc.
- Dedusting brush
- With ionizing bar, top
- With ionizing bar, bottom
- With independent drive
- With separate control unit
- Length approx. 910 mm
- Width approx. 2,600 mm
- Weight 1,260 kg
- Extraction nozzle dia. 180 + 120 mm
- Total connected load: 7.6 kW
- Voltage/Frequency: 400 V / 50 Hz

Pos. 3

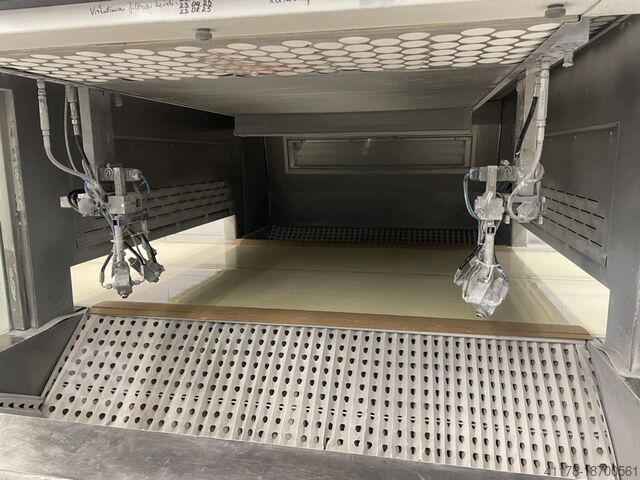

Venjakob VEN SPRAY Perfect Automatic Spray Coater
- Manufacturer: Venjakob
- Type: VEN SPRAY PERFECT
- Year of manufacture: 2013
- Working width: 1,300 mm
- Working height: 940 +/- 20 mm
- Operator side: left
- IR preheating, number of emitters: 2 pcs.
- Dual drive for spray guns
- Dry extraction
- Extraction nozzle diameter: 600 mm
- Exhaust air output: 10,000 m³/h
- Belt conveyor system
- Feed speed stepless adjustable approx. 4–10 m/min
- Belt cleaning system
- Lacquer recovery via V-belt system
- Spray gun control: EPS-CNC CNC 7000
- Colour management system for 3+1 pumps
- Number of installed airless spray guns: 4 pcs.
- Quick-change system for spray devices
- Remote maintenance system
- Dust protection hood at machine outfeed
- Exhaust air recirculation system
- Controlled exhaust fan
- Suitable for water-based coatings
- Suitable for solvent-based coatings
- Length: 5,509 mm
- Width: 4,500 mm + 2,400 mm
- Height: 3,380 mm + 510 mm
- Total connected load: approx. 20–26 kW
- Voltage/Frequency: 400 V / 50 Hz
- Colour: RAL 7035
- Kremlin AVX AirMix spray guns
- Small volume tank
- Spray gun carrier arm system for quick removal of 4 AirMix spray guns from the spray booth, including quick couplings for pneumatic and material hoses.

Pos. 4
Venjakob Belt Conveyor
- Manufacturer: Venjakob
- Working width: 1,300 mm
- Length: 2,000 mm
- Feed rate adjustable via handwheel approx. 2.5 – 7.5 m/min
- Voltage/Frequency: 400 V / 50 Hz
- Colour: RAL 7035

Pos. 5
Cefla High-Performance Dryer
- Manufacturer: Cefla
- Type: VN 2000/5500/190.5/30
- Year of manufacture: 2003
- Working width: 1,300 mm
- Number of pallets: 30 pcs.
- Pallet length: 5,600 mm
- Usable pallet length: 5,300 mm
- Load capacity per pallet: 300 kg
- Max part height: approx. 110 mm
- Clear height between pallets: 120 mm
- Centre-to-centre (pallet): 3,658 mm
- Max part length: approx. 5,200 mm
- Number of controlled temperature zones: 2 pcs.
- Supply air output: 6,000 m³/h
- Exhaust air output: 6,000 m³/h
- Max heat output: 175 kW
- Max drying temperature: approx. 55–60°C
- With heat exchanger, hot water
- Without hot water control valves
- Through-feed direction in U-form
- Infeed side: right
- Feed speed variable via frequency converter approx. 2–20 m/min
- Suitable for water-based coatings
- Suitable for solvent-based coatings
- Length: 7,820 mm
- Width: 6,130 mm
- Height: 3,905 mm
- Total connected load: approx. 23 kW
- Voltage/Frequency: 400 V / 50 Hz
- Voltage fluctuation max. +/- 5 %
- Without control valves and water pumps

Pos. 6
Belt Conveyor Infeed Transport
- Manufacturer: Cefla
- Working width: 1,300 mm
- Length: 2,000 mm
- Feed rate adjustable via
