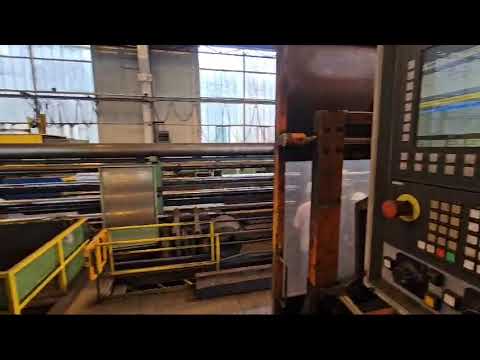

Ťažký sústruh

WALDRICH-SIEGEN DWSD 100 - 22000 mm

Swing diameter over bed: 2,000 mm
Swing diameter over support: 1,600 mm
Turning length: 22,000 mm
Swing diameter: 2,000 mm
Turning length: 20,500 mm
Control: SIEMENS SINUMERIK 840 D
Workpiece weight: 70,000 kg
Main drive total power requirement: 110 kW
HEAVY-DUTY TURNING MACHINE

____CNC RETROFIT____
2006

____CENTER DISTANCE____
22,000 mm

____MAX. TURNING LENGTH____
SUPPORT 1: 20,000 mm
SUPPORT 2: 20,500 mm

____MAX. SWING DIAMETER____
OVER SUPPORT: 1,600 mm
OVER BED: 2,000 mm

____WORKPIECE WEIGHT____
Max. 70,000 kg

____FACE PLATE____
DIAMETER: 2,000 mm
FACE PLATE SPEEDS, STEPLESSLY VARIABLE IN 4 RANGES: 1.2 – 75 rpm
MAX. TORQUE AT NOMINAL SPEED 5.65: 170,000 Nm

MAIN MOTOR: 110 kW

MAX. CLAMPING DIAMETER AT HEADSTOCK: 1,640 mm
MAX. CLAMPING DIAMETER AT TAILSTOCK: 920 mm

ROLLER REST CAPACITY (PASS-THROUGH): 2 units, 600 - 1,290 mm
STEADY REST CAPACITY (PASS-THROUGH): 100 - 775 mm

CONTROL: SIEMENS SINUMERIK 840 D

____SUPPORT 1 (AT HEADSTOCK)____
Cross slide travel: 550 mm
Carriage travel: 400 mm
Longitudinal rapid traverse: 3,000 mm/min
Plan rapid traverse: 1,500 mm/min
Toolholder system: Sitzmann-Heinlein
Stepless longitudinal feed: 0.5 - 3,000 mm/min
Stepless plan feed: 0.5 - 1,500 mm/min

____SUPPORT 2____
Cross slide travel: 550 mm
Credpsvanv Usfx Abtoh
Carriage travel: 400 mm
Longitudinal rapid traverse: 3,000 mm/min
Plan rapid traverse: 1,500 mm/min
Toolholder system: Sitzmann-Heinlein
Stepless longitudinal feed: 0.5 - 3,000 mm/min
Stepless plan feed: 0.5 - 1,500 mm/min

____TAILSTOCK____
Face plate diameter: 1,200 mm
Quill diameter: 350 mm
Max. quill stroke: 150 mm
