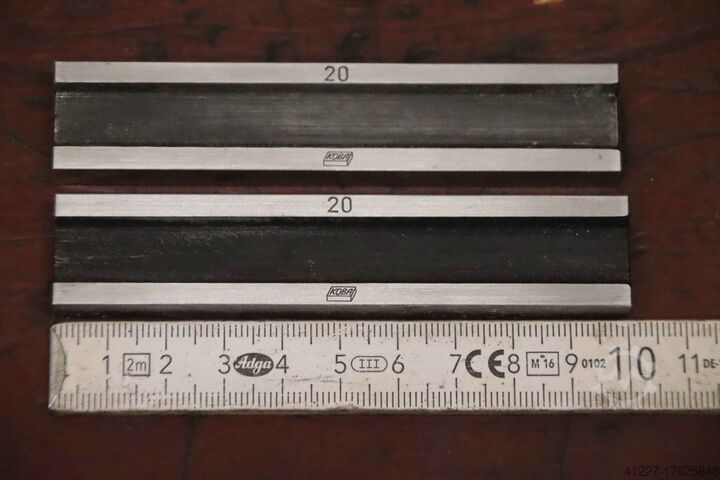

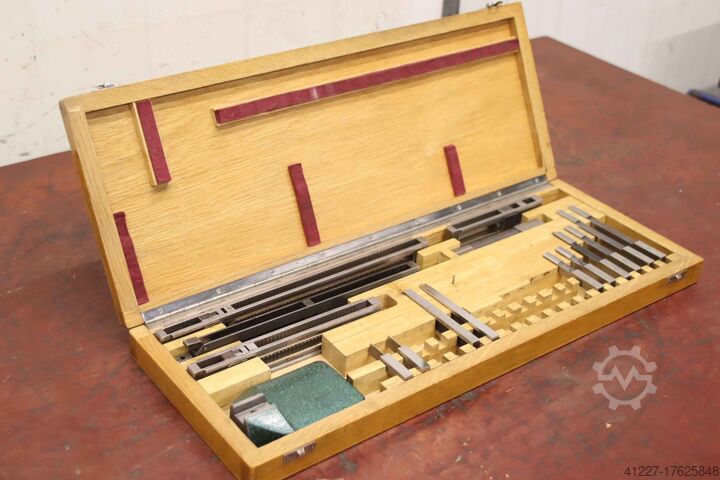

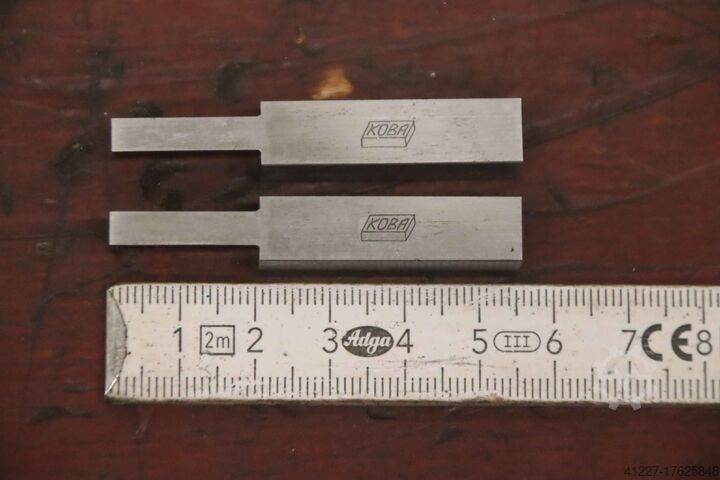

Súprava paralelného meracieho bloku rovina-paralelné meracie rameno

Koba 0-200

Rok výroby: 2002, stav: použitý, z-axis travel 200 mm Maximum clamping diameter of cutter heads: 550 mm Maximum permissible cutter head weight: 150 kg Cutter head mounting plate diameter: 360 mm Cutter head mounting taper nominal diameter: 500 mm Machine weight approx. 2.3 t Space requirement approx. 2 x 1.5 x 2.03 m Cutter Head Setting and Measuring Machine In the manufacturing process for spiral bevel gears, the quality of the gear cutting tools used plays a decisive role. Especially during dry milling, high gear quality and long tool life can only be achieved by precisely adjusted cutter heads. Kedpfxsy A S U Sj Al Sedu The CS 200 cutter head setting and inspection device enables fast and easy adjustment of individual cutters, checks their position, and documents the measurement results. The measurement process on the CNC-controlled inspection device is semi-automated: operator-guided instructions are displayed on the screen for each step of the procedure. The positioning of the individual cutters in the cutter head, as well as the height of the cutter tips, is largely automated via a special sequence and is simultaneously documented using a runout diagram. A subsequent measurement sequence checks the radial position of the inner and outer cutting edges of all cutters in the cutter head. If individual inspection parameters on the cutters do not meet the specified tolerances, they can be adjusted individually. By combining a semi-automated adjustment routine, operator-guided setup actions, and an automated measurement sequence, cutter heads can be set comfortably, quickly, and with high precision. Operator-guided Setup and Inspection Process - Graphical representation of the cutter head design and measurement results with tolerance checking - Clear text instructions for the operator (no cryptic codes) - Easy assignment of measurement results to individual cutters - Documentation of setting and measurement results via printer - Adjustment and inspection routine suitable for stick blade cutter heads of the types ARCON®, RSR, Spirapid, SPIRON®, TRI-AC® - Interface for neutral data

Stav: veľmi dobrý (použitý), Rok výroby: 1966, Zeiss merací mikroskop Typ WMM 150/75, rok výroby 1966. Slúži na meranie obrobkov všetkého druhu, najmä na kontrolu meradiel, tvarových meradiel, závitových kalibrov, šablón a pod. Meranie v pravouhlých súradniciach x+y a v polárnych súradniciach x alebo y. Merací rozsah je 150 x 75 mm. Súčasťou je návod na obsluhu a príslušenstvo. Kedpfxot T Uave Al Sjdu

Stav: ako nová (výstavný stroj), Schölly Flexilux halogénová svetelná jednotka 150 W Ksdpfx Aep Ecfzol Ssdu

Stav: nový, Charakteristika Káblová sonda na hydrostatické meranie hladiny, s keramickou meracou bunkou Priemer = 22 mm: Všeobecné použitie, pitná voda Priemer = 42 mm: Aplikácie s odpadovou vodou Priemer = 29 mm: Aplikácie so slanou vodou Kdedpeh Rumbjfx Al Ssu

Stav: dobrý (použitý), Merací zosilňovač, napájací modul, merací zosilňovač v bodovom prevedení -Výrobca: Keyence, merací zosilňovač v bodovom prevedení -Typ: SJ-M300 Kdodpsxv Sf Ujfx Al Ssu -Výbojová tyč: typ SJ-M030G -Počet: 3x merací zosilňovač k dispozícii -Cena: za kus -Prepravné rozmery: 250/180/V80 mm -Hmotnosť: 0,9 kg/kus.

Stav: ako nová (výstavný stroj), Schölly Flexilux halogénová svetelná jednotka 90 W Ksdpfxjp Ecfwo Al Sjdu
