Kompletná lakovňa

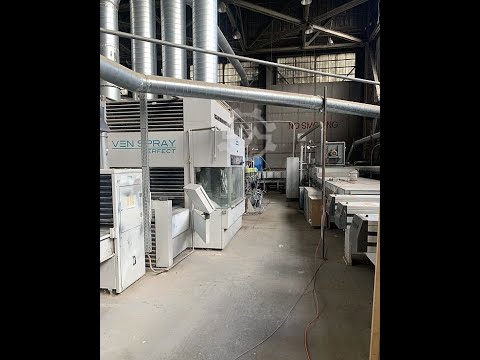

Venjakob VEN SPRAY PERFECT

Complete painting system for high production requirements and efficient series production:

• Many and fast color changes


• for application of water-based paints (demonstrable savings in heating energy and reduction of environmental emissions)


• Conservation of resources thanks to intelligent air routing and treatment


• Integrated air humidification system ensures top painting quality with low energy consumption


• Short material supply routes


• High system availability (double scrubber system)


• Particularly powerful (high feed speeds)

TECHNICAL DETAILS

Coating materials: water-based
Conveyor belt width: 1,350 mm
Coating capacity: 0.2 - 227 m³/min (6 - 8000 CFM)

Working height: 940 mm
Temperature: (hot water) 80 / 60 °C

MACHINE DETAILS

Estimated service life: approx. 2,000 hours
Machine height: 3,861 mm
Installation dimensions: 8,718 x 25,707 mm

Operating voltage: 230/400 V, 50 Hz, (3L+N+PE)
Power: 107.5 kW
Compressed air: 6 bar

EQUIPMENT

• Dry filter


• 4 guns on 2 lifting arms


• 5 Kremlin pumps

For solvent and water-based paints (two belt cleaning systems and pumps, one for solvent and one for water-based paints)

Additional IR lamps installed by Venjakob and controlled by the main system to preheat the material and two additional IR lamps within the drying line.

Three UV lamps, currently two mercury and one gallium lamp for highly efficient UV curing and also for gel coating.
