Automatický rabatovací stroj

WEINIG Univar 6 P

Number of spindles: 3 pcs.
Number of tool sets: 1.3/4.1 pcs.
Spindle diameter: 50, 40 mm
Spindle length: 120, 320, 125 mm
Weight: 2500 kg
Loading dimensions L x W x H: 3800 x 1400 x 2000 mm
Table length: 3470 mm
Weinig Univar 6 P
For sale on behalf of the customer
-----
Operating voltage: 380 Volt, 50 Hz.

For the profiling of windows, doors and similar workpieces with asymmetrical profiles.

Aggregate arrangement:
1. Right-hand climb-cut spindle, pneumatically controlled.
2. Right-hand profiling spindle
3. Hardware (fitting) spindle

Profiling spindle suitable for mounting several tools in sequence. Spindle movement is pneumatic.

For tear-free profiling, the first spindle works in climb cut. On the last 100 mm of each frame end, this spindle engages the wood with the corresponding tool to prevent tear-out at the corners.

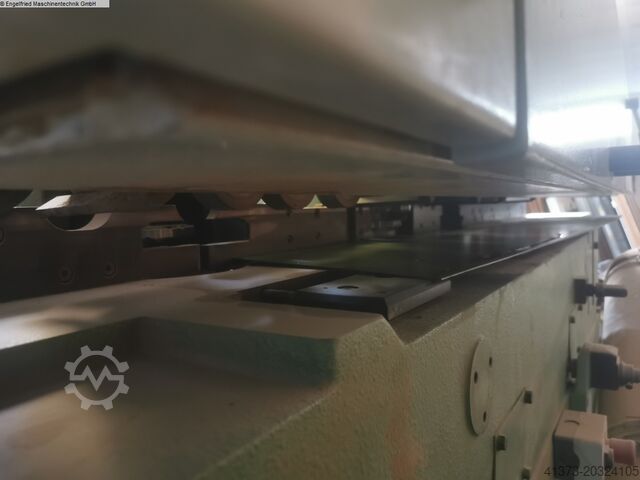

Machine frame, tables, fences:
Machine body made from heavy, torsion-resistant and vibration-damping elements. Fences on the right in the profiling area made of Pertinax. In front of the profiling spindle, a divided fence with sliding insert for short workpieces. Additional stop rail for large frames.
Isdpjxpi Elsfx Agusbc

Feed system:
Continuous, chainless feed with rubber rollers. Blowing device for feed rollers and table.

Spindles, hood:
Spindles with high-precision concentricity and dynamically balanced. Extraction hoods designed for optimal chip removal. Tool changes made easy by quick-release hood covers.

Machine operation, adjustment aids:
Machine operated from the front. Fence adjustment to tool diameter with mechanical digital display.

Electrical system, motors, control:
Electrical equipment according to DIN VDE 0113 – Electrical Equipment of Industrial Machines EN 60204 IEC 204-1.
Further electrical standards not considered.
Dynamically balanced motors.
Tool position control via selector switch on control panel.

Tools:
Machine supplied with service tools but without machining tools.

SPINDLE 1
Climb-cut spindle
Number of tools: 1
Spindle speed: 6000 rpm
Spindle diameter: 50 mm
Tool clamping length: 120 mm
Max. tool diameter (profiling): 232 mm
Tool reference diameter: 112-140 mm
Home position below table: 10 mm
Motor output: 4 kW (5.5 kW)

SPINDLE 2
Number of tools: 4
Vertical spindle stroke: 3 x 80 mm = 4 tools
Alternatively adjustable to 2 x 95 mm = 3 tools
Spindle speed: 6000 rpm
Spindle diameter: 50 mm
Tool clamping length: 320 mm

Feed rate profiling unit: 8 m/min
Feed roller width: 50 mm / 35 mm
Feed roller diameter: 95 mm
Fence height: 70 mm
Working width: min. 30 mm; max. 220 mm
Working height: min. 30 mm; max. 100 mm
Workpiece length without tenons: min. 245 mm

Max. tool diameter:
With reference diameter 112 mm: 210 mm
With reference diameter 140 mm: 232 mm

Max. tool diameter (profiling): 232 mm
Tool reference diameter: 112–140 mm
Home position below table: 10/5 mm
Motor output: spindle: 11 kW, feed: 1.1 kW
Feed rate profiling unit: stepless 6–12 m/min
Feed roller width: 50 mm
Feed roller diameter: 95 mm
Fence height: 70 mm
Working width: min. 30 mm; max. 220 mm
Working height: min. 30 mm; max. 100 mm
Workpiece length without tenons: min. 245 mm

Special equipment:
3 mechanical spindle bre...
