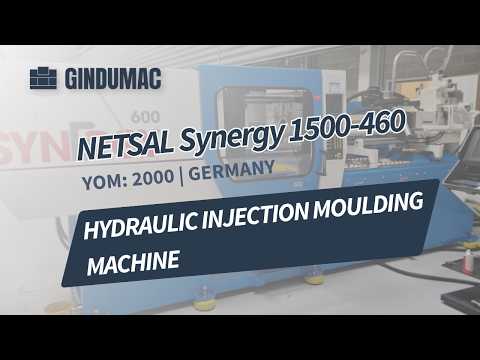

Netstal Synergy 1500-460

Netstal Synergy 1500-460

Hydraulic injection moulding machine from the year 2000. This Netstal Synergy 1500-460 offers a clamping force of 1,500 kN and an injection force of 279 kN. It features a mould opening stroke of 0–450 mm and a mould height adjustment range of 400–700 mm. If you are looking for a high-quality injection moulding machine, you should consider the Netstal Synergy 1500-460, which we currently have for sale. Please contact us for further details.

• Hydraulics and clamping system
• Operating pressure: 210 bar
• Injection force: 279 kN
• Opening stroke: 0–450 mm
• Mould height: 400–700 mm
• Electrical supply
• Supply 1 (3L+PE)
• Rated voltage: 400 V / 50 Hz
• Rated current: 63 A
• Motor protection: 55 A
• Motor power: 30 kW
• Cable cross-section: 16 mm²
• Nameplate values: Rated current 55 A; Rated power 30 kW
• Supply 2 (Heating/Control) (3L+N+PE)
• Rated voltage: 400 V / 50 Hz
• Rated current: 100 A
• Total connected load (heating/regulation): 67.6 kW
• Cable cross-section: 35 mm²
• Nameplate values: Rated current 97.7 A; Rated power 67.6 kW
• Control voltages
• AC: 230 V
• DC: 5 V / ±15 V / 24 V
• Auxiliary units and drives
• Oil filter motor: 400 V / 0.6 A
• Central lubrication (slow): 400 V / 0.9 A
• Central lubrication (fast): 400 V / 3.0 A
• Central lubrication (F110): 230 V / 1.0 A / 0.10 kW
• Heating/plasticising and outlets
• Plasticising 1: 230 V / 20.9 kW
• Plasticising 2: 230 V
• Mould heating: 230 V
Hnjdjy Dr Tdspfx Affsk
• Sockets: 230 V / 57.7 kW
